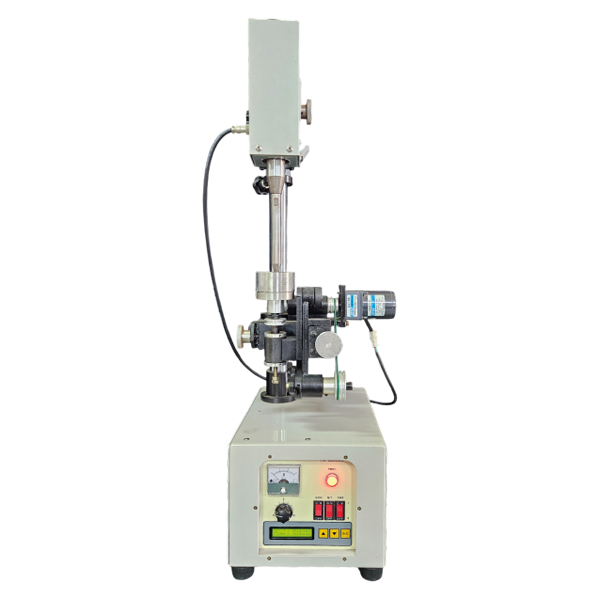

HD-380
Semi-Automatic Ultrasonic Shaping and Polishing Machine
- Precise centering with the X and Y axes.
- Automatic tuning system
- Die polishing performance range: 1.0~30mm (20KHz)
- Compact size and reasonable price
mail Inquiry
Specifications
| Power Supply |
AC 220V / 50-60 Hz |
| Ultrasonic Output Power |
200 W |
| Operating Frequency |
20 kHz |
| Frequency Tuning |
Automatic |
| Ultrasonic Transducer |
BLT Type |
| Cooling Method |
Air Cooling |
| Dimensions |
250 × 380 × 880 mm |
| Weight |
37 kg |
| Die Hole Diameter Range |
1.0 - 30 mm |
Features
- Precise centering with the X and Y axes.
- Automatic tuning system
- Die polishing performance range: 1.0~30mm (20KHz)
- Compact size and reasonable price
