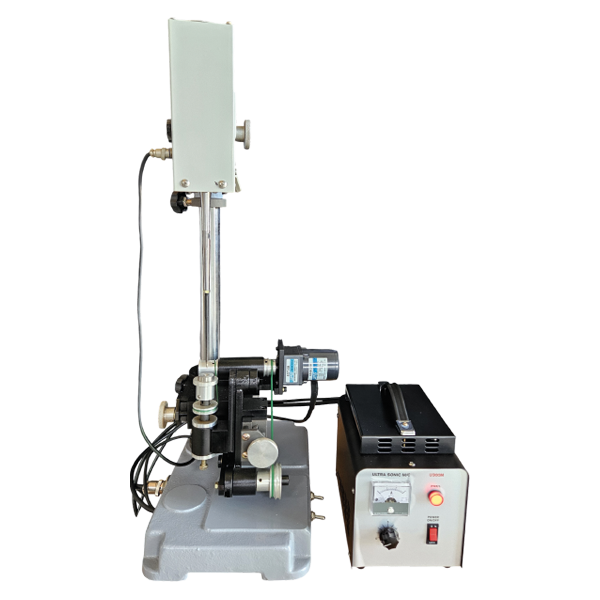

HD-300B
Manual Ultrasonic Polishing Machine
- Easy Operation
- Precise Alignment
- Automated Tuning
- Cost-Effective & Compact
mail Inquiry
Specifications
| Power Supply |
AC 220V / 50-60 Hz |
| Ultrasonic Output Power |
200 W |
| Operating Frequency |
25 kHz |
| Frequency Tuning |
Automatic |
| Ultrasonic Transducer |
BLT Type |
| Dimensions |
380 × 250 × 660 mm |
| Weight |
30 kg |
| Ultrasonic Control Box |
250 x 160 x 210 / 6kg |
| Die Hole Diameter Range |
0.01 – 3.0 mm |
Features
- Capable of polishing dies from 0.01 to 3.0 mm using 25 kHz ultrasonic.
- The polishing angle may be adjusted to suit the desired purpose.
- Easy enough for beginners to fully master its use, a single operator may operate and supervise up to max. 30 machines simultaneously.
- Precise centering by adjusting the X and Y axes.
- The automatic tuning system allows the user to easily change cycles.
- Compact size and reasonable price
