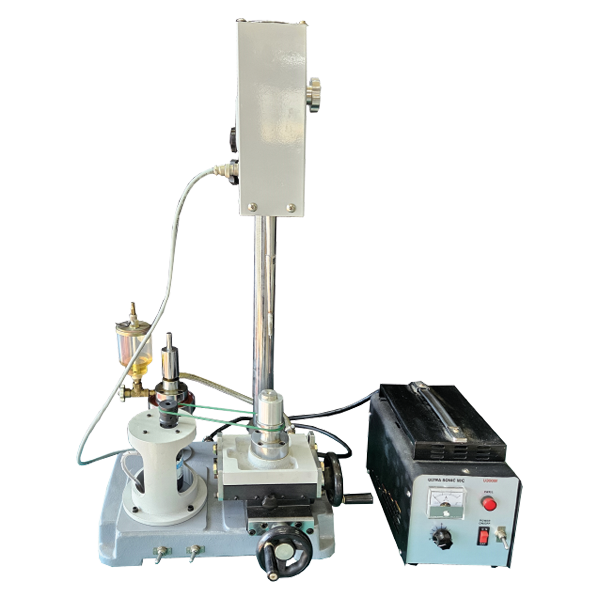

HD-300A
Manual Ultrasonic Shaping Machine
- Versatile Diamond Machining
- Precise Power Control
mail Inquiry
Specifications
| Power Supply |
AC 220V / 50-60 Hz |
| Ultrasonic Output Power |
200 W |
| Operating Frequency |
25 kHz |
| Die Holder |
Oil Pressure System |
| Ultrasonic Transducer |
BLT Type |
| Frequency Tuning |
Automatic |
| Dimensions |
430 × 360 × 770 mm |
| Weight |
40 kg |
| Ultrasonic Control Box |
270 x 160 x 210 / 6kg |
| Die Hole Diameter Range |
0.01 – 7.0 mm |
Features
- Separate Ultrasonic Control Box for precise ultrasonic power adjustment.
- The ultrasonic transducer machines the workpiece using micron-level vibrations.
- The oil pressure system is produced with a tolerance of ±1/1000 ml.
- The HD-300A serves to perform drilling and surface machining of natural and synthetic diamonds with a die re-cutting range of 0.01~7.0mm.
